Forming
Press-brake bending for sheet and plate — simple brackets to multi-bend enclosures.
[ Overview ]
Forming turns a flat blank into a part. We run a range of hydraulic and electric CNC press brakes up to 350 ton with a 144-inch bed, so the same department that bends a small bracket also bends a full-length enclosure. Every bend is programmed offline and simulated before the first hit — tooling selected, bend sequence planned, and springback compensated — so setup time shrinks and the first piece comes out right. A broad in-house tooling library covers standard angles, hems, offsets, and returns; when a part calls for something non-standard, we'll tool up for it rather than turn it away.
[ At a Glance ]
[ The Machines ]
Equipment, in detail.
Every machine below is on our floor and ready to run — not a representative list, not a ceiling. This is what's cutting, welding, machining, and bending your parts.
Up to 350 Ton · 144 in Bed

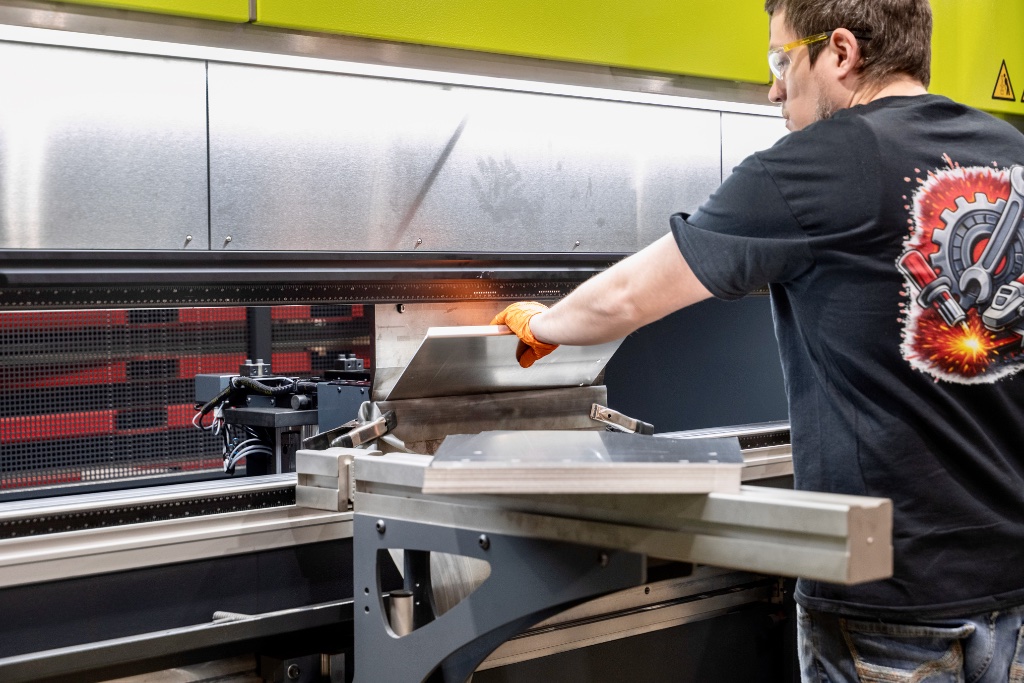

Hydraulic CNC Press Brake
The heavy plate and long-part machine — handles thick stock and full-length bends in one setup.
Press Force
Up to 350 ton
Bed Length
144 in
Tolerance
± 0.010 in
Best For
Thick plate · Long parts
Programming
Offline · bend simulation
Tooling
Broad in-house library
Servo-Electric
Electric CNC Press Brake
High-speed, high-accuracy bending for thinner sheet and precision work — fast ram response and tight angle control.
Drive
Servo-electric
Tolerance
± 0.010 in
Best For
Thin sheet · Precision bends
Speed
Fast ram response
Programming
Offline · bend simulation
Tooling
Quick-change tooling
[ How It Runs ]
The process, step by step.
- 01Flatten blank reviewed; bend lines and angles confirmed
- 02Bend sequence and tooling programmed offline and simulated
- 03Springback compensated per material and angle
- 04First piece bent and verified to print
- 05Run continues with in-process angle checks
[ Materials Handled ]
- Mild steel sheet and plate
- Stainless steel
- Aluminum
- Galvanized and coated sheet
- Brass and copper (select work)
[ Typical Applications ]

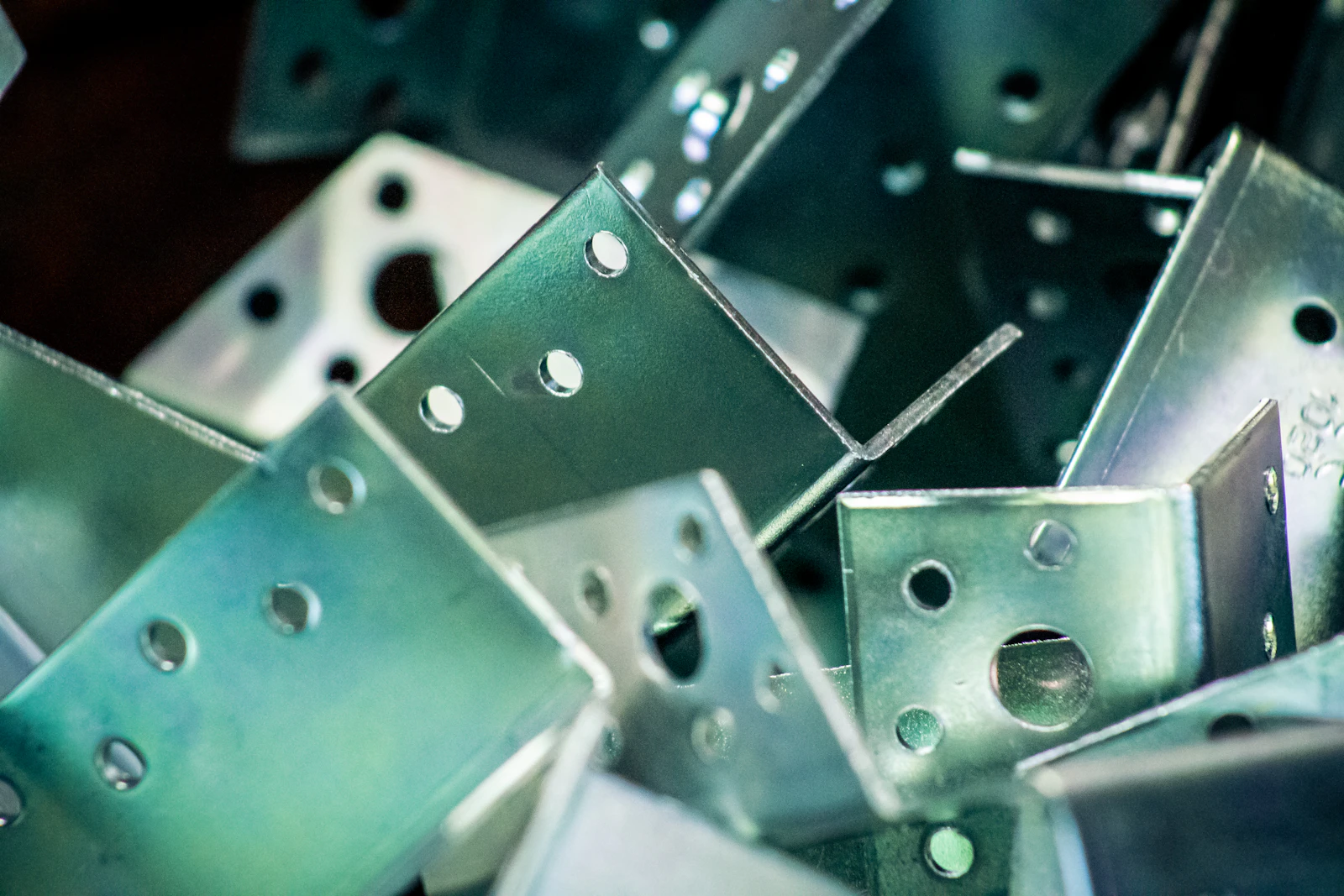

- Brackets, gussets, and angles
- Enclosure and cabinet bodies
- Channels, flanges, and returns
- Multi-bend complex parts
- Hems, offsets, and joggles
- One-off parts requiring custom tooling
[ What's Included ]
- 350-ton hydraulic & electric press brakes
- CNC press brake bending
- Offline programming & bend simulation
- Multi-bend enclosures
- Broad tooling library for fast setup
- First-article verification
